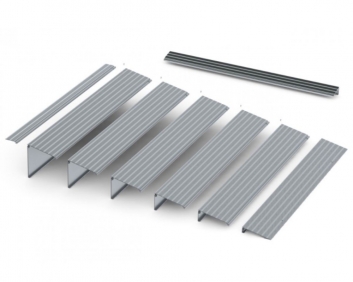

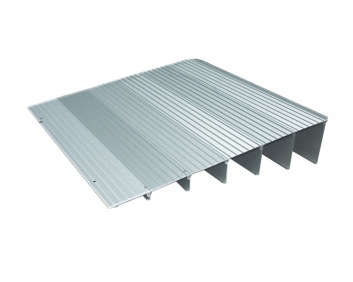

Standing Section Aluminum Threshold Ramp
Aluminum construction, light weight and not rust- Attributes: rehabilitation therapy support / wheelchair ramp
- Easily accommodates thresholds from 3cm to 16cm high
- Outspread dimension: 16.9 - 80.6cm
- Loading capacity: 600lbs
Customization
- Customized logo ( Min. order: 50 piece )
- Customized packaging ( Min. order: 50 piece )
For more customization details, message supplier
Key attributes
| Item # | Dimension (cm) | Packing Size (cm) | NW (kg) | GW (kg) | Loading Qty |
| ATR1S | 16.9 x 86.4 x 3 | 87 x 14 x 4 | 1.50 | 2.00 | 5100PCS / 20'FT |
| ATR15S | 23.1 x 86.4 x 4.5 | 87 x 19 x 5 | 2.00 | 2.50 | 3000PCS / 20'FT |
| ATR2S | 29.6 x 86.4 x 6 | 88 x 15 x 6 | 3.00 | 3.50 | 3100PCS / 20'FT |
| ATR3S | 42.5 x 86.4 x 8.5 | 88 x 15 x 9 | 4.40 | 5.00 | 2100PCS / 20'FT |
| ATR4S | 55.2 x 86.4 x 11 | 88 x 15 x 12 | 6.40 | 7.00 | 1500PCS / 20'FT |
| ATR5S | 67.9 x 86.4 x 13.7 | 88 x 15 x 15 | 8.30 | 8.90 | 1200PCS / 20'FT |
| ATR6S | 80.6 x 86.4 x 16 | 88 x 15 x 17 | 10.30 | 10.80 | 1100PCS / 20'FT |
